Projects under operation





Sl No.

Project

District

Installed Capacity

(MW)

1.

Dehri

Rohtas

6.6

2.

Barun

Aurangabad

3.3

3.

Valmikinagar

West Champaran

15

4.

Kataiya

Supaul

20

5.

Agnoor

Arwal

1.0

6.

Dhelabagh

Rohtas

1.0

7.

Nasriganj

Rohtas

1.0

8.

Triveni

West Champaran

3.0

9.

Jainagra

Rohtas

1.0

10.

Shrikhinda

Rohtas

0.7

11.

Sebari

Rohtas

1.0

12.

Belsar

Arwal

1.0

13.

Arwal

Arwal

0.5



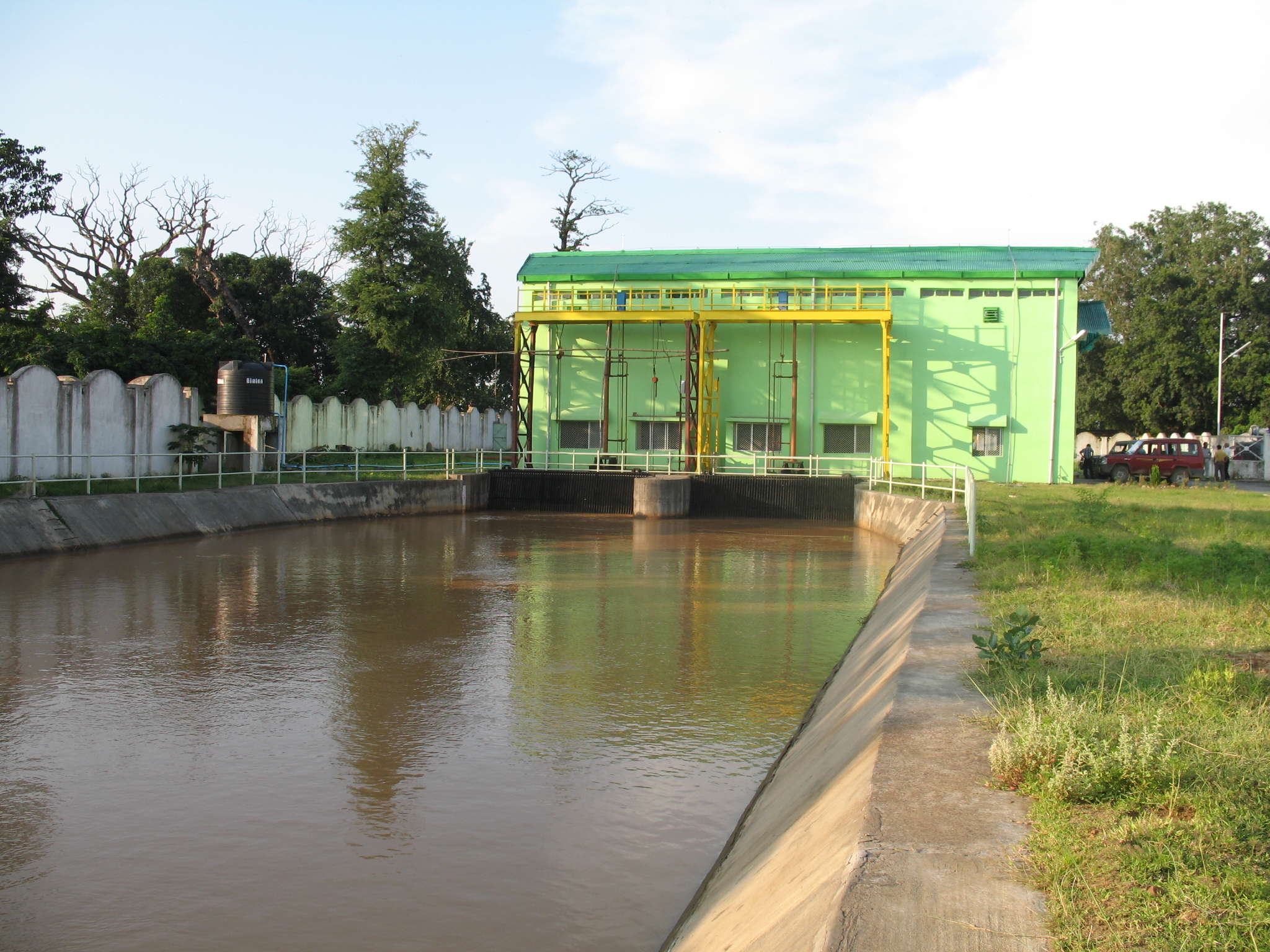

Sone Western Link Canal H.E. Project, Dehri (4x1.65 MW)







General Report





1.01            Sone  Canal System is one of the oldest canal system in the country. It is in operation since 1874. Originally anicut was constructed near Dehri on river Sone with canal off taking from either side of it.



1.02    The Sone Western Link Canal Hydroelectric Project is utilising exiting fall of 3.87 meters on Sone Western Link Canal (SWLC) km. 10.12(RD 33.20) near it confluence with Sone Western main canal for generation of Hydroelectric Power.





SALIENT FEATURES





1. Catchment area of Sone river at the Sone barrage   :           69000 sq. km.



2. Water Conductor System (S.W.L.C.)



    (a) Power Channel                                     :           798 m.

    (b) Tail Race Channel                                :           150 m.



3. Power House (Semi Underground with top entry)



    (a) Installed capacity                                   :          4x1.65 MW.

    (b) Type of Units                                          :           Bulb

    (c)  Av. Tail race level                                 :          101.6 m.

    (d)  Maximum (Head)                                  :          5.5 m.

    (e)  Minimum (Head)                                   :          3.87 m.

    (f) Rated Head                                            :           3.87 m.

    (g) Maximum Design Discharge                :         226.24 cumecs.

    (h) Annual Energy Generation                    :        43.106 Gwh

    (i)  Area of P.H.                                           :         50 M x 29 M.



4.  Turbine(s)                                                  :         1.8 MW, 120rpm, Bulb Type,

                                                                                 Semi Kapalan, horizontal shaft.



5.  Generator(S)                                              :         1692KW, 1880KVA, 0.9 P.f.

                                                                                   6.6 kv 50Hz, 120

                                                                                   rpm, Synchronous generator



6.  Switchyard                                                 :           2 nos., 5MVA 6.6/33

                                                                                   KV Transformers



7.  Consultants                                                :          Central Electricity Authority

                                                                                   & Central Water Commission,

                                                                                   Sewa Bhawan, R.K. Puram,

                                                                                   New Delhi -66



8.   Status of Project                                        :           All units commissioned in 1993.



9.   Generating Equipments                             :          Supplied, Erected & Commissioned by                                                                                M/s Bharat Heavy Electricals Ltd.



10.  Power House                                            :          Constructed by M/s National Projects                                                                      Construction Company











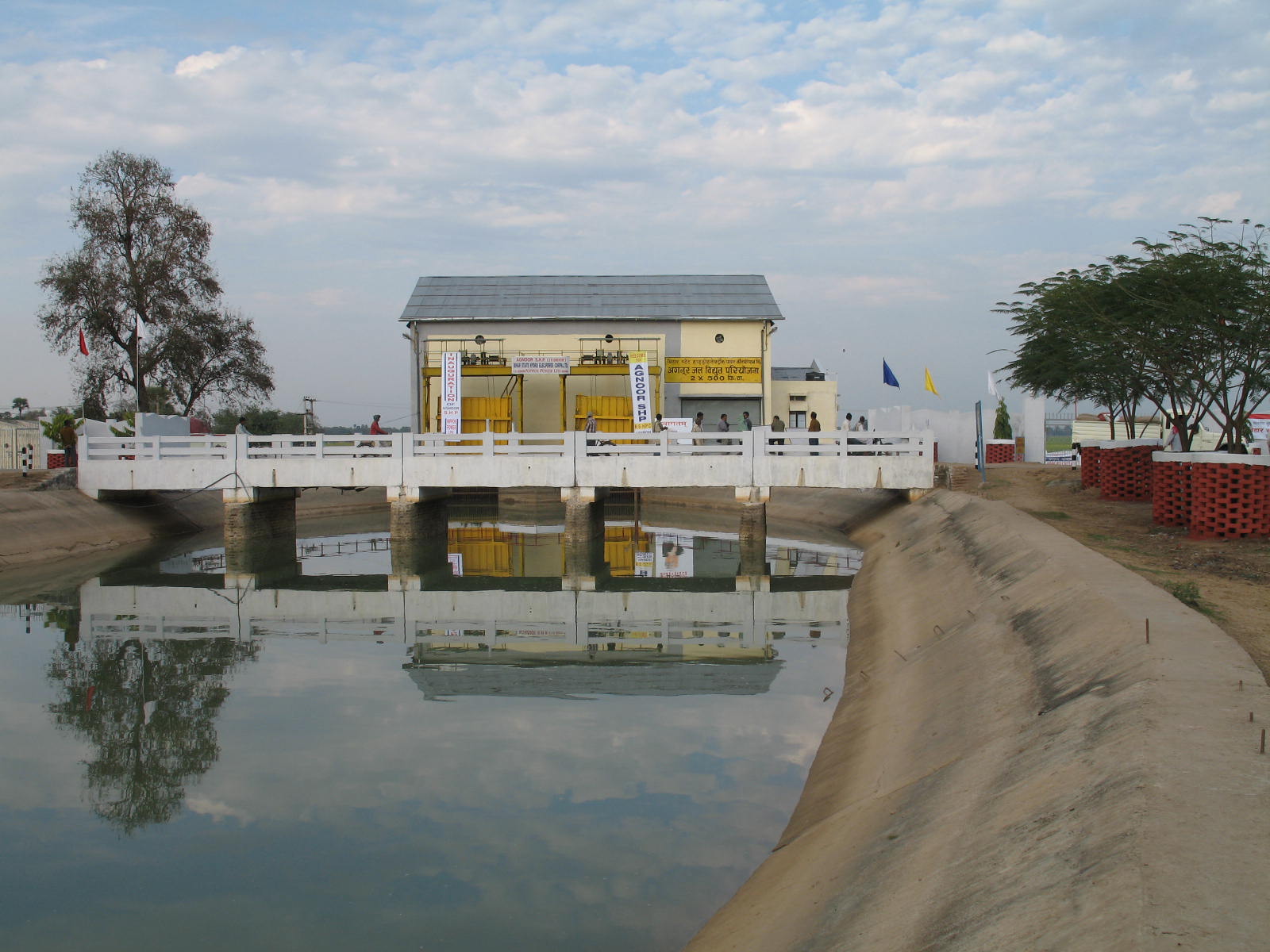

 Sone Eastern Link Canal H.E. Project, Barun (2x 1.65 MW)







General Report





1.01          Sone Canal System is one of the oldest canal system in the country. It is in operation since 1874.



1.02          The Sone Eastern Link Canal (SELC) Hydroelectric Project envisages to utilize the existing fall of 3.87 meters on Sone Eastern Link Canal at Km. 10.30(RD 33.80) near its confluence with Sone Eastern Main Canal for generation of Hydroelectric Project.





SALIENT FEATURES





1.         Catchment areas of Sone river at the Sone barrage : 69000 sq. Km.



2.         Water Conductor system

            a)         Power Channel                                    :           569m.

            b)         Tail Race Channel                               :           130m.



3.         Power House



            a) Installed capacity                                         :           2x1.65 MW

            b) Type of Units                                               :           Bulb

            c) Av. Tail-race level                                        :           101.6 m.

            d) Maximum Head                                            :           5.21 m.

            e) Minimum Head                                             :           3.87 m.

            f) Rated Head                                                  :           3.87 m.

            g) Maximum Design Discharge                        :           99.12 cumecs.

            h) Size of P.H.                                                  :           41mx20m

            i) Annual Energy Generated                            :           19.45 Gwh.



4.         Turbine(s)                                                        :           1.8 MW, 120 rpm, Bulb Type

                                                                                                Semi Kaplan,

                                                                                                Horizontal shaft.



5.         Generator(s)                                                    :           1692KW, 1880 KVA, 0.9

                                                                                                 p.f. 6.6 KV 50 Hz. 120

                                                                                                 rpm,  synchronous Generator



6.         Switchyard                                                       :           1 No. 5MVA, 6.6/33

                                                                                                  KVA Transformer



7.         Consultants                                                     :           Central Electricity Authority

                                                                                                &  Central

                                                                                                Water  Sewa Bhawan, R.K. Puram,

                                                                                                 New Delhi – 66



8.         Status of the Project                                        :           All units Commissioned

                                                                                                in1996.



9.        Generating Equipments                                    :           Supply, Erected

                                                                                                & commissioned byM/s .                                                                                               Bharat Heavy Electricals Ltd.





10.       Power House                                                   :           Constructed by

                                                                                                M/s Mednani Construction Corporation.









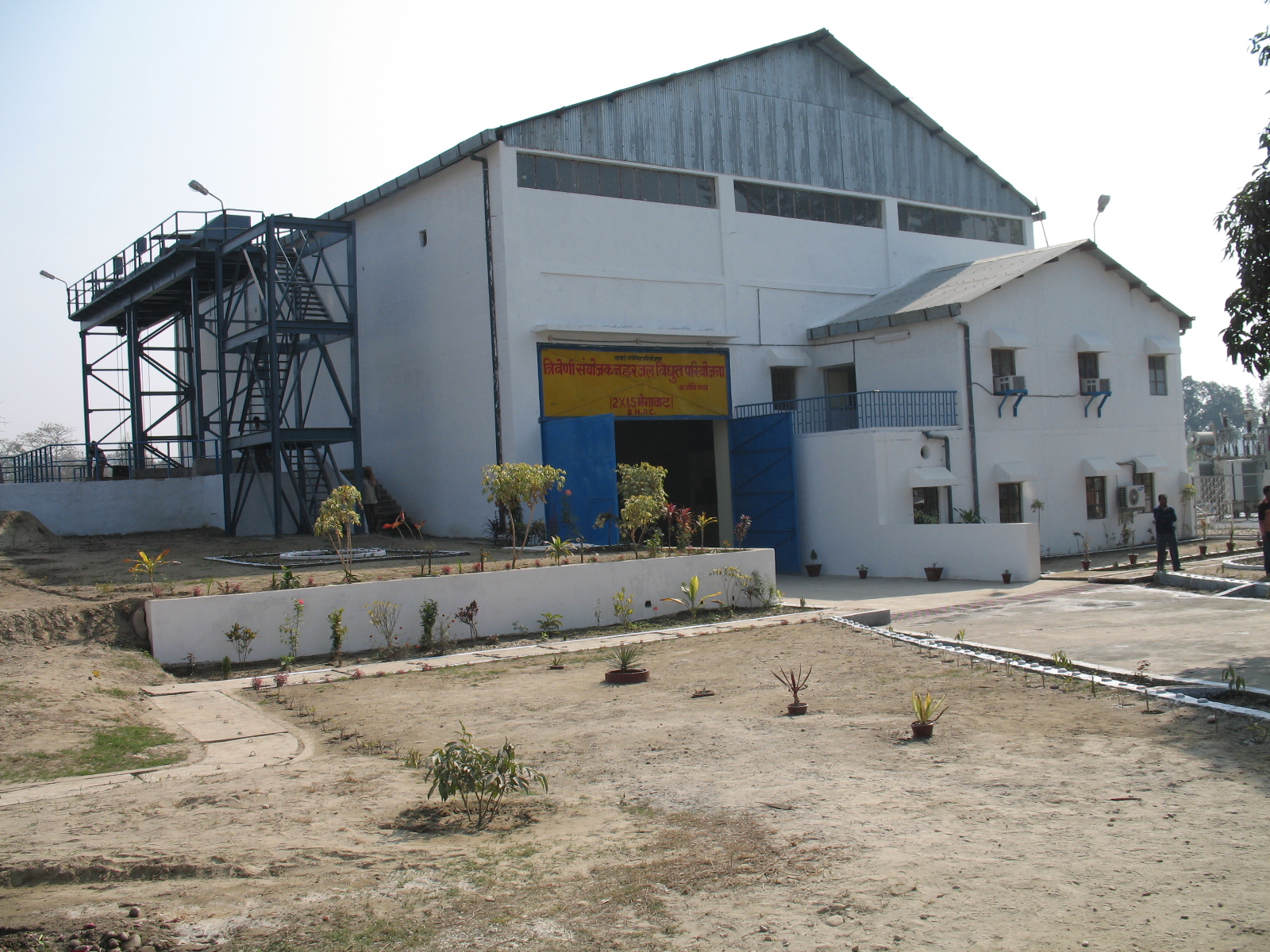

 Eastern Gandak Canal H.E. Project, Valmikinagar (3x5 MW)







General Report







1.01          The Gandak Barrage at Valmikinagar partly in Bagaha Block II of the West Champaran District intercepts water of a catchment which lies partly in Nepal and partly in India. The government of India and His Majesty’s Government of Nepal entered into an agreement in December, 1959 for the purpose of the construction of this barrage and sharing of water. Some modification were subsequently made in this agreement in 1964 for the protection of Nepal’s riparian rights. Basically there is an agreed share of water for ‘western Canal System including a power station in Nepal and Eastern canal System. The barrage was constructed on the Gandak river at Valmikinagar in 1968-69 for providing  irrigation to Nepal, U.P. and Bihar. The Eastern Gandak Canal Project was taken up in 1960 and Main Canal system was completed in 1975. A hydroelectric generating station with an installed capacity of  15 MW(3x5 MW) has already been constructed and commissioned on the fall of 5.3 m at RD 6.0 on by pass to Eastern Gandak Canal.





SALIENT FEATURES





1.         Catchment area of Gandak at Barrage            :           37,410 Sq. Kms.



2.         Water Conductor System



            (a) Power Channel                                           :          1400 M

            (b) Tail Race Channel                                     :           4223 M



3.         Power House



            (a)        Installed capacity                                 :           3x5 MW

            (b)        Type of Units                                       :           Bulb

            (c)        Av. Tail Race Level                              :           EL 104.7 m

            (d)        Maximum Head                                    :           7.1 m

                        Minimum Head                                     :           4.97m

            (e)        Rated   Head                                        :           5.3 m

            (f)         Design Discharge                                :           357.3 cumecs

            (g)        Annual Energy Gen.                            :           98 GWH

            (h)        Area of P.H.                                         :           54m x 20m



4.         Turbine (s)                                                       :           5.670 MW, 107 rpm, Bulb

                                                                                                Type, Horizontal shaft

                                                                                                 with movable wicked gates &

                                                                                                 movable blades.



5.         Generator (s)                                                   :            Type –GDH 6435T-28, 5.556

                                                                                                 MW, 6112 KVA, 486 Amp.,

                                                                                                 0.9 p.f., 50 Hz, 107 rpm.



6.         Switchyard                                                       :           2x10 MVA, 6.6/132KV transformer



7.         Consultants                                                     :           Central Water Commission &  Central

                                                                                                Electricity Authority,   Sewa Bhawan,

                                                                                               R.K. Puram,New Delhi – 66



8.         Status of the Project                                        :           All units commissioned in                                                                                             1995-97



9.         Generating Equipments                                   :           Supplied, Erected &  Commissioned by

                                                                                                M/s. Fuji Electric, Japan.



10.       Power House                                                   :           Constructed by M/s.Hindustan Steel and

                                                                                                Construction Ltd.(A Govt. of India

                                                                                                Undertaking)







Kosi Hydel Power Station (4x4.8 MW)





General Report



1

Location







i)

State

:

Bihar



ii)

District

:

Supaul



iii)

Block

:

Basantpur



iv)

Road

:

Birpur – Saharsa Road At Village-Kataiya-Birpur-9Km





v)

Rail

:

Raghopur Rly Station -25 Km



2

Canal fall

:

The power house is located at RD.12.5 at the Main Eastern Kosi Canal in village – Kataiya.

3

Head race channel (Open unlined Trapezoidal canal)



i)

Type

:

Earthen



ii)

Capacity

:

15000 Cusec(425 cumec)



iii)

Bed width



108 M



iv)

Length

:

3600 M from Barrage



v)

Maximum water level

:

242.88 SPD



vi)

Minimum water level

:



4.

Tail race Channel

:





i)    Type

:

Earthen



ii)   Bed Width

:

108 M



(a)  Ordinary Water Level

:

23271 SPD



(b)   Maximum Water Level

:

22971 SPD

5.

Barrage







i)

Gate height

:

21 Feet



ii)

EL of gate

:

230 Feet



iii)

Nos of opening (Gates)



:

60



iv)

Width of gate



:

46 Feet



v)

Size of pier

:







(a) End pier

:

7’each





(b) Intermediate pier

:

10’ each

6.

By Pass channel







i)

Type

:

Earthen/Pucca



ii)

Capacity



:

7800 Cusec (220 cumec)

7.

Water Head

:





a)  Minimum

:

13 Feet



b)  Maximum

:

23 Feet

8.

Annual Closure

:

120 days in a year

9.

Power House







i)Size









Width

:

23.1 M





Length

:

92.2 M





Height

:

14.0 M



ii)Installed Capacity

:

4x4.8 MW

10.

E/M works







a)

Turbine

:





i)

Type

:

Kaplan (bulb) with moveable wicket gates & runner blades, horizontal shaft.



ii)

Manufacturer

:

Hitachi Japan



iii)

Rated speed

:

 93.8 R.P.M



iv)

Rated Head

:

6.1 m (20 ft.)



v)

Rated Output

:

5600 KW each



vi)

Rated Discharge

:

104.5 cum/sec.(3690cu.ft./sec.)



vii)

Runner Diameter

:

4500 mm



viii)

Type of governor

:

Hydro-Mechanical



ix)

Operating oil pressure

:

25 Kg/Sq.cm



x)

Servomotor Diameter

:

 320 mm



xi

Servomotor Stroke

:

415 mm



xii)

Volume of pressure Accumulated

:

2600 liters



xiii)

No. of oil pump-motor sets

:

2









b)

Generator

:







i)

Type

:

Synchronous, Horizontal Bulb



ii)

Rated Capacity

:

5647 KVA



iii)

Generation Voltage

:

6.6 kv



iv)

Power Factor

:

0.85



v)

Rated speed

:

93.8 R.P.M



vi)

Cycle

:

50 Hz.



vii)

No. of Poles

:

64



viii)

Type of excitation system

:

3-phase A.C induction motor driven direct coupled & pilot d.c. generators.





ix)

Main Excitation Voltage

:

250 V D.C



c)

Power house crane















Type

:

Electric over head Traveling crane (Hitachi Make)







Capacity

:

35T + 10T







No of Units

:







Trolley travel

:

32.871







Bridge travel

:

65.771



d)

Power













(i) Annual Energy  Generation

:

98 MU (Estimated)









(ii) Power evacuation

:

Through 33 KV line (evacuated in 33KV BSEB network)







   Agnoor Small Hydel Project ( 2x500 KW)







Salient Features



1.01          Sone Canal System is one of the oldest canal systems in the country. It is in operation since 1874.



1.02          The Agnoor H.E. Project envisages  to utilize the existing fall of 3.37 meter on Patna Branch Canal at km 41.92 (near its confluence with Sone Eastern) Main Canal for generation of Hydro Electric Power.



1.03          Location : Block –Kaler, Distt. Jehanabad





 1.        Catchment area of Sone river  at the Barrage :           69000 sq. km.



2.         Water Conductor System



            (a) Power Channel                                           :           380M.

            (b) Tailrace Channel                                        :           160 M



3.         Power House



            (a) Installed capacity                                        :           2 x 500 KW.

            (b) Type of Unit                                                :          S-Type Tubular

            (c) Maximum Head                                           :           4.272 Meters

            (d) Minimum Head                                            :           3.034 Meters

            (e) Design Head                                              :           3.37 Meters

            (f) Size of P.H.                                                  :           30m x 15m

            (g) Design discharge                                       :           41.4 cumecs

            (h) Annual Energy Generation                         :           5.3 GWH.



4.         Turbine( s)                                                       :           S-Tubular, Horizontal Shaft



5.         Generator (s)                                                   :           Synchronous generators 2Nos., 500

                                                                                                 KW 0.9 p.f.,   415 V. with 10%

                                                                                                 continuous overload.



6.         Switch Yard



            (a) Transformer                                               :           1 No. 1.250 MVA, 0.4/11KV

            (b) Size                                                            :           15 m x 30 m.



7.         Consultants                                                     :           Alternate Hydro Energy

                                                                                                Centre University of Roorkee,

                                                                                                Roorkee-227667,Uttaranchal.



8.         Status of the Project                                        :           All units commissioned



9.         Supplies of Generating Equipment                  :           M/s Boving Foures Ltd, Plot   No. 7,

                                                                                                KIADB, Industrial Area, Banglore.



10.        Power House Construction                              :           On turn-key basis by

                                                                                                M/s. Nippon Power Ltd.,10 A,  Jackson

                                                                                                Lane, Calcutta – 700 001











  Dhelabagh Small Hydel Project (2x500 KW)







Salient Features





1.01          Sone Canal System is one of the oldest canal systems in the country. It is operation since 1874.



1.02          The Dhelabagh H.E. Project envisages to utilize the existing fall of 3.2 meter on Arrah Branch Canal  at 8.2 Km. Main Canal for generation of Hydro Electric Power.



1.03           Location : Block –Dehri-on-Sone, Distt –Rohtas (Sasaram).







1.         Catchment area of Sone river at the barrage  :           69000 sq. km.



2.         Water Conductor System



            (a)        Power Channel                                    :           200 M. PCC lining

            (b)        Tailrace Channel                                 :           260 M. PCC lining



3.         Power House



            (a)        Installed Capacity                                :           2x500 KW.

            (b)        Type of Unit                                         :           Semi Kaplan.

            (c)        Maximum Head                                    :           4.21 M

            (d)        Minimum Head                                     :           3.20 M

            (e)        Design Head                                        :           3.20 M

            (f)         Size of P.H.                                          :           12M x 8M x 8M.

            (g)        Design Discharge                                :           54.4 Cumecs.

            (h)        Annual Energy Generation                  :           11.92 GWH



4.         Turbine(s)                                                        :           Semi Kaplan Syphon Intake Vertical

                                                                                                 Turbine.



5.         Generator (s)                                                   :           Synchronous Brushless, Electronic

                                                                                                Governor vertical  Generator …..

                                                                                                KW;…p.f. voltage.



6.         Switch Yard



            (a) Transformer                                               :           1 No. 1.875 MVA, 0.4/11 KV.

            (b) Size                                                            :           8M x 5M



7.         Consultants                                                     :           Alternate Hydro Energy Centre,

                                                                                               University of Roorkee, Roorkee–

                                                                                               227667,Uttaranchal



8.         Status of the Project                                        :           All units commissioned



9.         Generating Equipment                                     :



10.       Power House Construction                              :           M/s. Sahabad Engineers Pvt. Ltd.,

                                                                                                Dehri-on-Sone









 Nasriganj Small Hydel Project (2x 500 KW)





Salient Features





1.01          Sone Canal System is one of the oldest canal systems in the country. It is in operation since 1874.



1.02          The Nasriganj H.E  Project envisages to utilize the existing fall of 4.50 meter on Arrah Branch Canal at 17.2 Km. Main Canal for generation of Hydro Electric Power.



1.03          Location: Block – Nasriganj, Distt. – Rohtas (Sasaram)







1.         Catchment area of Sone river at the barrage  :           69000 sq. km.



2.         Water Conductor System



            (a)        Power Channel                                    :           180 M PCC lining

            (b)        Tailrace Channel                                 :           180 M. PCC lining



3.         Power House



            (a)        Installed capacity                                 :           2x500 KW

            (b)        Type of Unit                                         :           Semi Kaplan.

            (c)        Maximum Head                                    :           6.06 M

            (d)        Minimum Head                                     :           4.50 M

            (e)        Design Head                                        :           4.50 M

            (f)         Size of P.H.                                          :           16M x 8M x 8M

            (g)        Design Discharge                               :           25.8 Cumecs

            (h)        Annual Energy  Generation                 :           8.15 GWH



4.         Turbine (s)                                                       :           Semi Kaplan Syphon Intake  Vertical

                                                                                                 Turbine



5.         Generator (s)                                                   :           Synchronous, Brushless, Electronic

                                                                                                Governor Vertical  Generator ……KW;

                                                                                                 ….p.f.  ….voltage



6.         Switch Yard



            (a) Transformer                                               :           1No. 1.25 MVA, 0.4/11 KV

            (b) Size                                                            :           8 M x 5 M.



7.         Consultants                                                     :           Alternate Hydro Energy  Centre,

                                                                                               University of Roorkee,Roorkee- 227667,

                                                                                               Uttaranchal



8.         Status of the Project                                        :           Word awarded proposed excavation

                                                                                               May’2002.



9.         Generating Equipment                                     :



10.       Power House Construction                              :           M/s. Purochan Construction  Co. Patna







     Triveni Link Canal HEP (2x1.5 MW)





Salient Features





1.01          The Gandak Canal is one of the oldest canal systems in the country and the modified canal system is in operation since 1968-69.



1.02          The existing fall at RD 6.7 of Tirhut Main Canal & drop available at the head regulator of Triveni Canal off taking at RD. 9.5 of T.M.C. is proposed to be combined to generate 3.0 MW of Power in a Power House located at the by pass power channel.



1.03          Location :  Block Bagaha, Distt,- West Champaran.







1.         Catchment area at Gandak site           :           37,410 sq. kms.



2.         Water Conductor System



            (a)        Power Channel                        :           235 Meters

            (b)        Tail race Channel                    :           730 meters



3.         Power House



            (a)        Installed capacity                     :           2x1.5 MW

            (b)        Type of Unit                             :           Horizontal Tubular, ‘S’ Type

                                                                                     Full Kaplan Turbine

            (c)        Max. Head                                :           4.94 M.

            (d)        Minimum Head                         :           4.49 M.

            (e)        Design Head                            :           4.49 M.

            (f)         Size of Power House                :           25M x 15M x 19M.

            (g)        Design Discharge                    :           70.85 Cumecs.

            (h)        Annual Energy Generation      :



4.         Turbine (s)                                           :           2x1500 KW, 750 rpm.,Horizontal                                                                                     Shaft, Tubular-‘S’ Type full Kaplan.



5.         Generator (s)                                       :           Brushless Synchronous Horizontal                                                                                     type Generator 1500 KW, 50Mz.,                                                                                     750 rpm, Voltage – 3.3 kV.



6.         Switchyard                                           :           1No. 4MVA,3.3/33/KV, Transformer.



7.         Consultant                                           :           C.E.A., C.W.C., A.H.E.C., University                                                                                      of Roorkee, Roorkee



8.         Status of Project                                  :           Excavation work started.



9.         Generating Equipment                         :           To be supplied by M/s. Jyoti Ltd.,                                                                              Vadodra



10.       Power House Construction                  :           M/s. Pareek & Co., Main Road, Ranchi











      Jainagra Small Hydel Project (2x 500 KW)



Salient Features





1.01          Sone Canal System is one of the oldest canal systems in the country. It is in operation since 1874.



1.02          The Jainagra H.E  Project envisages to utilize the existing fall of 4.45 meter on Buxar Branch Canal of Sone Canal System of 3.2 Km. of Buxar Branch Canal for generation of Hydro Electric Power.



1.03          Location: Block – Nokha, Distt. – Rohtas (Sasaram)







1.         Catchment area of Sone river at the barrage  :



2.         Water Conductor System



            (a)        Power Channel                                    :           185 M PCC lining

            (b)        Tailrace Channel                                 :           140 M. PCC lining



3.         Power House



            (a)        Installed capacity                                 :           2x500 KW

            (b)        Type of Unit                                         :           Semi Kaplan.

            (c)        Maximum Head                                    :           5.24 M

            (d)        Minimum Head                                     :           4.45 M

            (e)        Design Head                                        :           4.45 M

            (f)         Size of P.H.                                          :           16M x 12M x 8M

            (g)        Design Discharge                               :           26.20 Cumecs





4.         Turbine (s)                                                       :           Semi Kaplan Syphon                                                                                                  Intake Vertical Turbine



5.         Generator (s)                                                   :           Synchronous, Brushless,

                                                                                                 Electronic Governor Vertical

6.         Switch Yard



            (a) Transformer                                               :           1No. 1.25 MVA, 0.4/11 KV

            (b) Size                                                            :           8 M x 5 M.



7.         Consultants                                                     :           Alternate Hydro Energy                                                                                    Centre, University of Roorkee,                                                                                                  Roorkee- 227667, Uttaranchal



8.         Status of the Project                                        :           Word awarded Proposed                                                                                                           excavation May’2002.



9.         Generating Equipment                                     :



10.       Power House Construction                              :           M/s. D.B.S. Construction Co. ,

                                                                                                Dehri-on-sone











     Shrikhinda Small Hydel Project (2x350 KW)







Salient Features





1.16          Sone canal system is one of the oldest canal systems in the country. It is in operation since 1874.



1.17          The Sirkhinda H.E. Project envisages to utilize the existing fall of 3.25 meter on Patna Branch Canal at 44.20  Km. main Canal for generation of Hydro Electric Power.



1.18          Location : Block – Nokha, Distt. - Rohtas (Sasaram)





1.         Catchment area of Sone river at the barrage  :           69000 sq.  km.



2.         Water Conductor System

            (a)        Power Channel            :           160 M, PCC lining

            (b)        Tailrace Channel         :           180 M, PCC lining



3.         Power House



            (a) Installed capacity                :           2x350 KW.

            (b) Type of Unit                        :           Semi Kaplan.

            (c) Maximum Head                   :           3.82 M

            (d) Minimum Head                    :           3.50 M

            (e) Design Head                      :           3.50 M

            (f) Size of P.H.                          :           16M x 12M x 8M

            (g) Design Discharge               :           23.20 Cumecs.

            (h) Annual Energy generation  :           5.35 GWH



4.         Turbine(s)                                :           Semi Kapalan Syphon Intake Vertical turbine.



5.         Generator (s)                           :           Synchronous Brushless, electronic Governor  vertical

                                                                         generator.



6.          Consultant                              :            Alternate Hydro Energy Centre,

                                                                         Indian Institute of Technology,

                                                                         Roorkee, Uttaranchal.







     Sebari Small Hydel Project (2x500 KW)





Salient Features





1.13          Sone canal system is one of the oldest canal systems in the country. It is in operation since 1874.



1.14          The Sebari H.E. Project envisages to utilize the existing fall of 3.20 meter on Arrah Branch Canal at 27.4  Km. main Canal for generation of Hydro Electric Power.



1.15          Location : Block – Nasriganj, Distt. – Rohtas (Sasaram)





1.         Catchment area of Sone river at the barrage  :           69000 sq.  km.



2.         Water Conductor System



            (a)        Power Channel            :           160 M, PCC lining

            (b)        Tailrace Channel         :           190 M, PCC lining



3.         Power House



            (a) Installed capacity                :           2x500 KW.

            (b) Type of Unit                        :           Semi Kaplan.

            (c) Maximum Head                   :           5.93 M

            (d) Minimum Head                    :           4.50 M

            (e) Design Head                      :           4.50 M

            (f) Size of P.H.                          :           16M x 8M x 8M

            (g) Design Discharge               :           25.80 Cumecs.

            (h) Annual Energy generation :           7.50 GWH



4.         Turbine(s)                                :           Semi Kapalan Syphon Intake Vertical turbine.



5.         Generator (s)                           :           Synchronous Brushless, electronic Governor

                                                                         vertical generator.



6.         Switch Yard                              :



            (a) Transformer                       :           1 No., 1.25 MVA, 0.4/11 KV.

            (b) Size                                    :           8M x 5M.



7.          Consultant                              :            Alternate Hydro Energy Centre,

                                                                         Indian Institute of Technology,

                                                                         Roorkee, Uttaranchal.







 Belsar Small Hydel Project (2x500 KW)







Salient Features





1.07          Sone canal system is one of the oldest canal systems in the country. It is in operation since 1874.



1.08          The Belsar H.E. Project envisages to utilize the existing fall of 3.25 meter on Patna Branch Canal at 40.20  Km. Main Canal for generation of Hydro Electric Power.



1.09          Location : Block – Arwal, Distt. Jahanabad





1.         Catchment area of Sone river at the barrage  :           69000 sq.  km.



2.         Water Conductor System

            (a)        Power Channel            :           160.0 M, PCC lining

            (b)        Tailrace Channel         :



3.         Power House



            (a) Installed capacity                :           2x500 KW.

            (b) Type of Unit                        :           Semi Kaplan.

            (c) Maximum Head                   :           3.42 M

            (d) Minimum Head                    :           3.25 M

            (e) Design Head                      :           3.25 M

            (f) Size of P.H.                          :           16M x 12M x 8M

            (g) Design Discharge               :           35.80 Cumecs.

            (h) Annual Energy generation :           6.03 GWH



4.         Turbine(s)                                :           Semi Kapalan Syphon Intake Vertical turbine.



5.         Generator (s)                           :           Synchronous Brushless, electronic

                                                                         Governor vertical generator.



6.         Switch Yard                              :



            (a) Transformer                       :           1 No., 1.25 MVA, 0.4/11 KV.

            (b) Size                                    :            6M x 4M.



7.          Consultant                              :            Alternate Hydro Energy Centre,

                                                                         Indian Institute of Technology,

                                                                         Roorkee, Uttaranchal.











Arwal Small Hydel Project(1x500 KW)



Salient Features



1.01          Sone canal System is one of the oldest canal system in the country. It is in operation since 1874.



1.02          The Arwal H.E. Project envisages to utilize the existing fall of 3.20 meter on Patna Branch Canal at 68.4 km. Main canal for generation of Hydro Electric Power.



1.03          Location : Block-Arwal, Distt – Jehanabad.





1.         Catchment area of Sone river at the barrage :           69000 sq km.



2.         Water Conductor System



            (a)        Power Channel            :           165. M, PCC lining

            (b)        tailrace Channel          :           180 M, PCC lining



3.         Power House



            (a)        Installed capacity         :          1x500 Kw.

            (b)        Type of Unit                 :           Semi Kaplan

            (c)        Maximum Head            :           3.98 M

            (d)        Minimum Head             :           3.20 M

            (e)        Design Head                :           3.20 M

            (f)         Size of P.H.                  :           10M x 8M x 8M

            (g)        Design Discharge        :           18.12 Cumecs

            (h)        Annual Energy Generation      :           3.35 GWH



4.         Turbine (s)                               :           Semi Kaplan Syphon Intake Vertical Turbine



5.         Generator                                :           Synchronous Brushless, Electronic Governor

                                                                        vertical Generator

6.         Switch Yard



            (a) Transformer                       :           1 No. 0.625 MVA, 0.4/11 KV

            (b) Size                                    :           8M x 5M.
